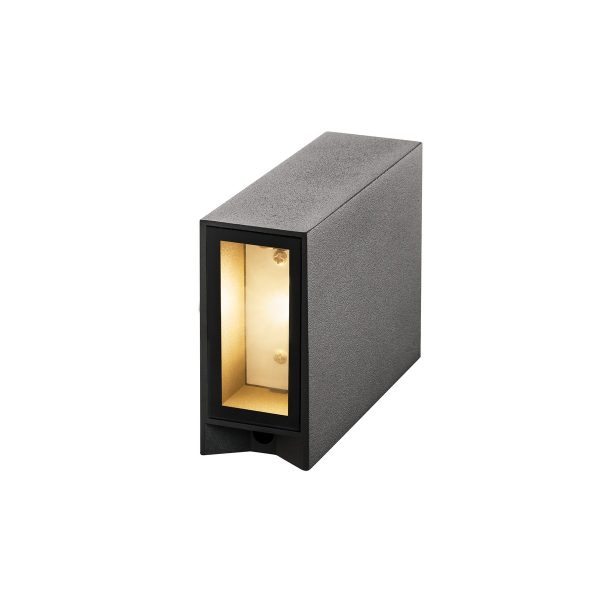

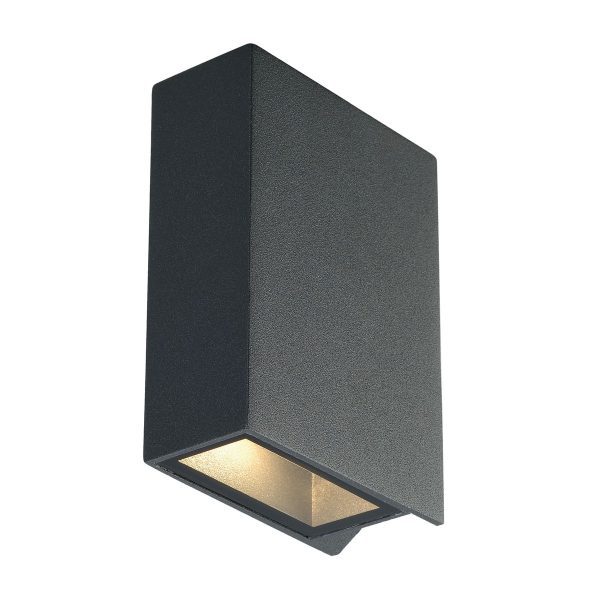

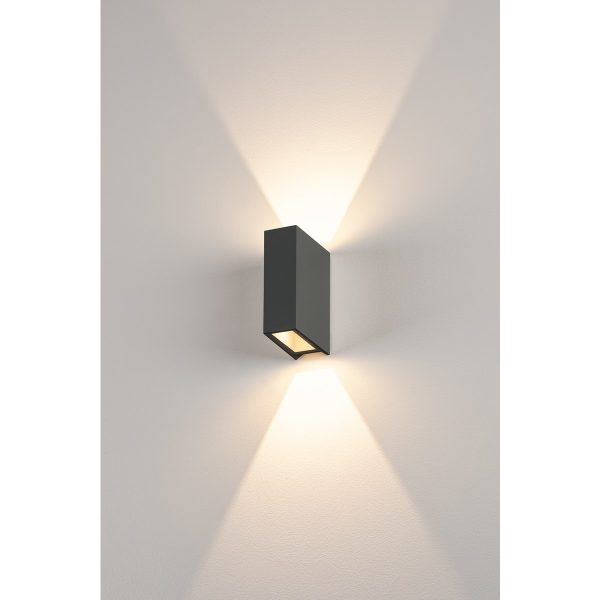

The QUAD 2 wall light is available in several colours, and fitted with a powerful, warm white LEDs. The two oppositely arranged light sources create two similar light beams (UP/DOWN). The electrical connection of the aluminium luminaire is made directly to the 230V mains supply using the built-in driver. Thanks to its IP44 protection class, the luminaire is suitable for outdoor use.

Technical data

Product name	QUAD UP/DOWN 12	Assembly	Surface
BIG WHITE Page	214	Assembly details	Wall
Colour	anthracite	Shape	square

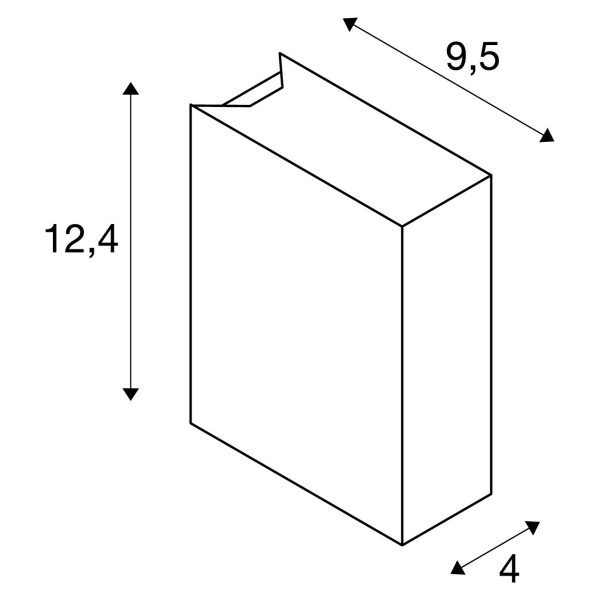

Material	Aluminium	Width	4 cm
electrical power	6.8 W	Height	12.4 cm
Lumen/wattage	20.59 lm/W	Light outlet	direct – indirect
Luminous Flux	140 lm	Luminous intensity distribution	symmetric
Colour temperature	3000 Kelvin	Service life	30000 h
Half beam angle	60 °	Primary nominal voltage	200-240V ~50/60Hz
CRI	90	Secondary power / secondary voltage	700mA
Different light outlets	2	Net weight	0.66 kg
Protection category	I	Weighted consumption	6.8 kWh/1.000h
IP Code	IP 44	LXXBXX data	L70B50
