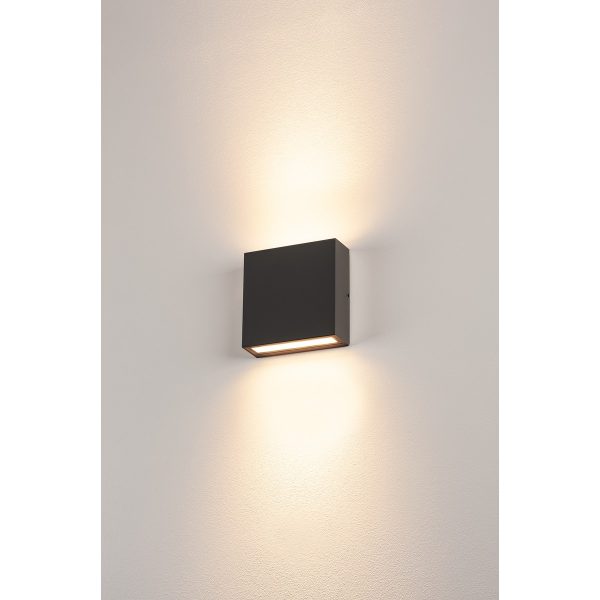

Equipped with a total of six high-performance warm white Power LEDs, the wall light BIG QUAD is available in various colour versions. The two oppositely arranged light sources create two similar light beams (UP/DOWN). The electrical connection of the aluminium luminaire is made directly to the 230V mains supply using the built-in driver. Thanks to its IP54 protection class, the luminaire is suitable for outdoor use.
Technical data
| Product name | BIG QUAD UP/DOWN | Assembly details | Wall |
| BIG WHITE Page | 687 | Shape | square |

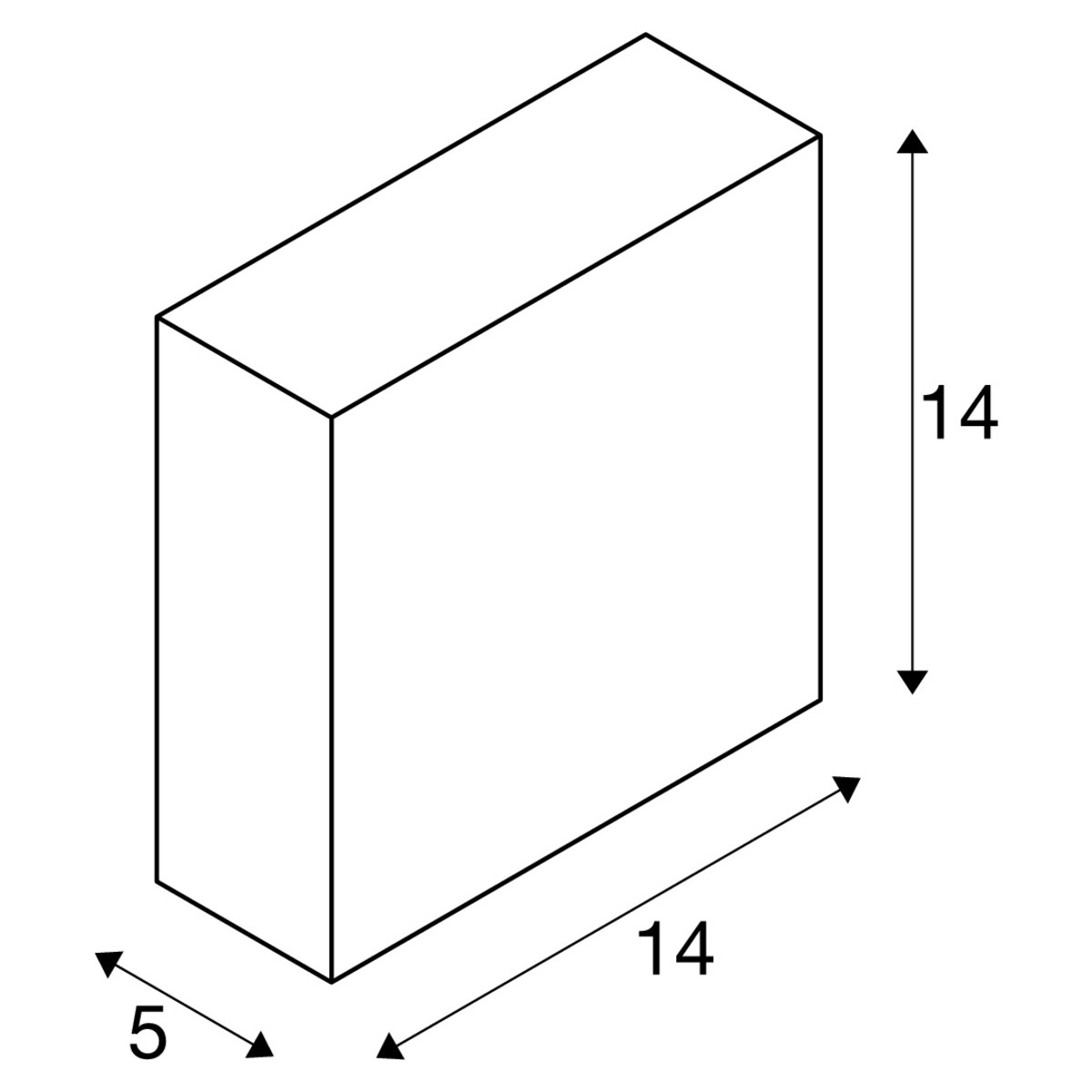

| Colour | anthracite | Width | 14 cm |
| Material | Aluminium | Height | 14 cm |
| electrical power | 8.8 W | Light outlet | direct – indirect |
| Lumen/wattage | 54.55 lm/W | Luminous intensity distribution | symmetric |
| Luminous Flux | 480 lm | Service life | 30000 h |
| Colour temperature | 3000 Kelvin | Shock resistance category | IK02 |
| Half beam angle | 30 ° | Shock resistance | 0.2 joule |
| CRI | 90 | Primary nominal voltage | 200-240V ~50/60Hz |
| Different light outlets | 2 | Secondary power / secondary voltage | 350mA |
| Protection category | I | Net weight | 0.9 kg |
| IP Code | IP 54 | Weighted consumption | 8.8 kWh/1.000h |
| Assembly | Surface | LXXBXX data | L70B50 |
