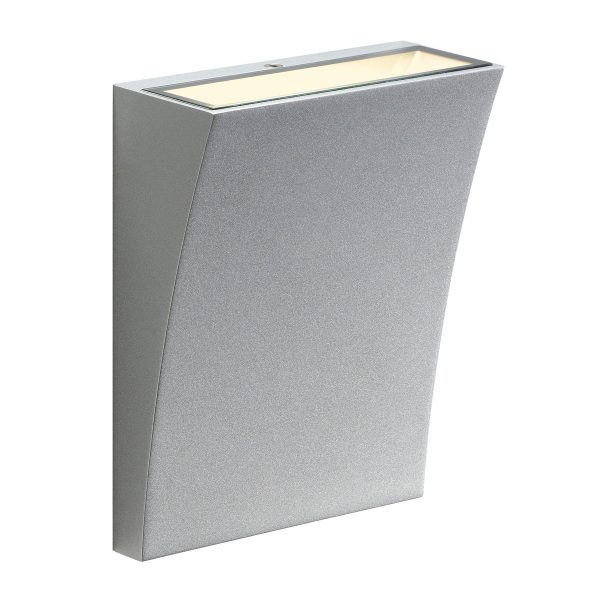

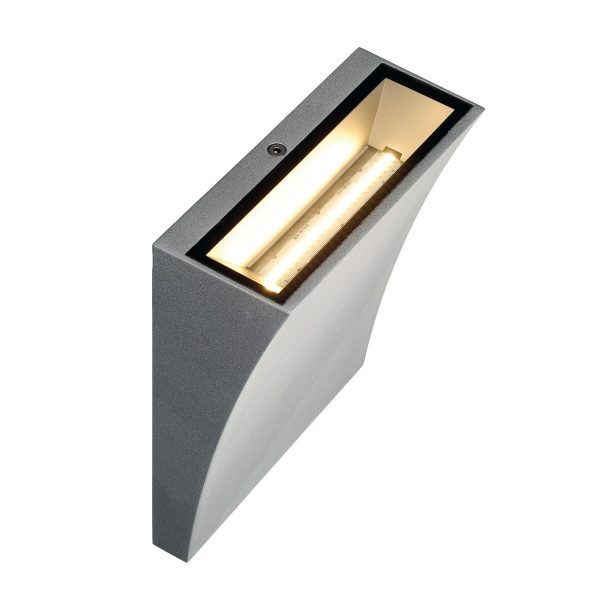

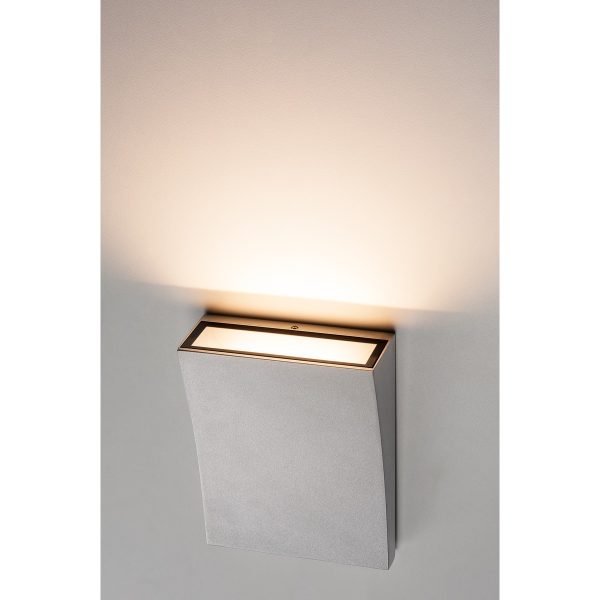

The DELWA WIDE aluminium wall light is fitted with two powerful flat LEDs with a warm white colour of light. The electrical connection of the aluminium luminaire is made directly to the 230V mains supply using the built-in driver. With protection class IP44, the luminaire is available in several colour versions and is suitable for outdoor use.
Technical data
| Product name | DELWA | Shape | square |

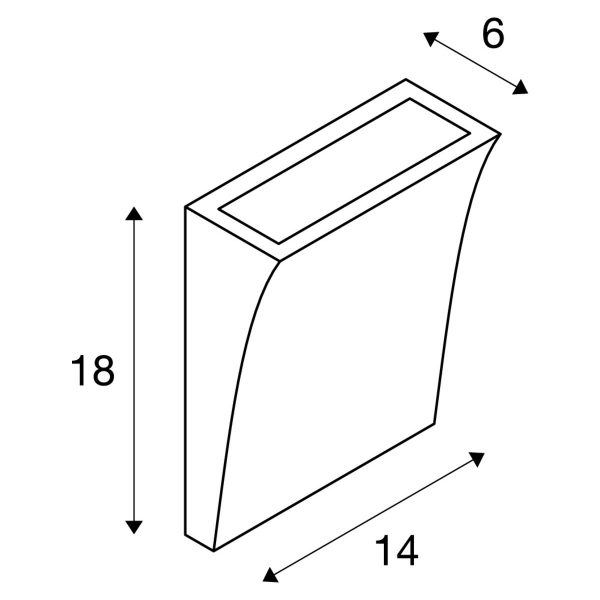

| BIG WHITE Page | 236 | Width | 14 cm |
| Colour | grey | Height | 18 cm |
| Material | Aluminium | Light outlet | direct – indirect |
| electrical power | 10 W | Luminous intensity distribution | symmetric |
| Lumen/wattage | 91 lm/W | Colour consistency | 6 SDCM |
| Luminous Flux | 910 lm | Service life | 30000 h |
| Colour temperature | 3000 Kelvin | Shock resistance category | IK02 |
| Half beam angle | 100 ° | Shock resistance | 0.2 joule |
| CRI | 90 | Primary nominal voltage | 100-240V ~50/60Hz |
| Different light outlets | 1 | Secondary power / secondary voltage | 700mA |
| Protection category | I | Net weight | 0.88 kg |
| IP Code | IP 44 | Weighted consumption | 10 kWh/1.000h |
| Assembly | Surface | LXXBXX data | L70B50 |
| Assembly details | Wall |
Manual (pdf)
