ELEMENT Downlight

12,58

DOWNLIGHT ELEMENT LED 9.6W SW 3000-4000-6000K ON-OFF WHITE IN IP20 / OUT IP54 16

Description

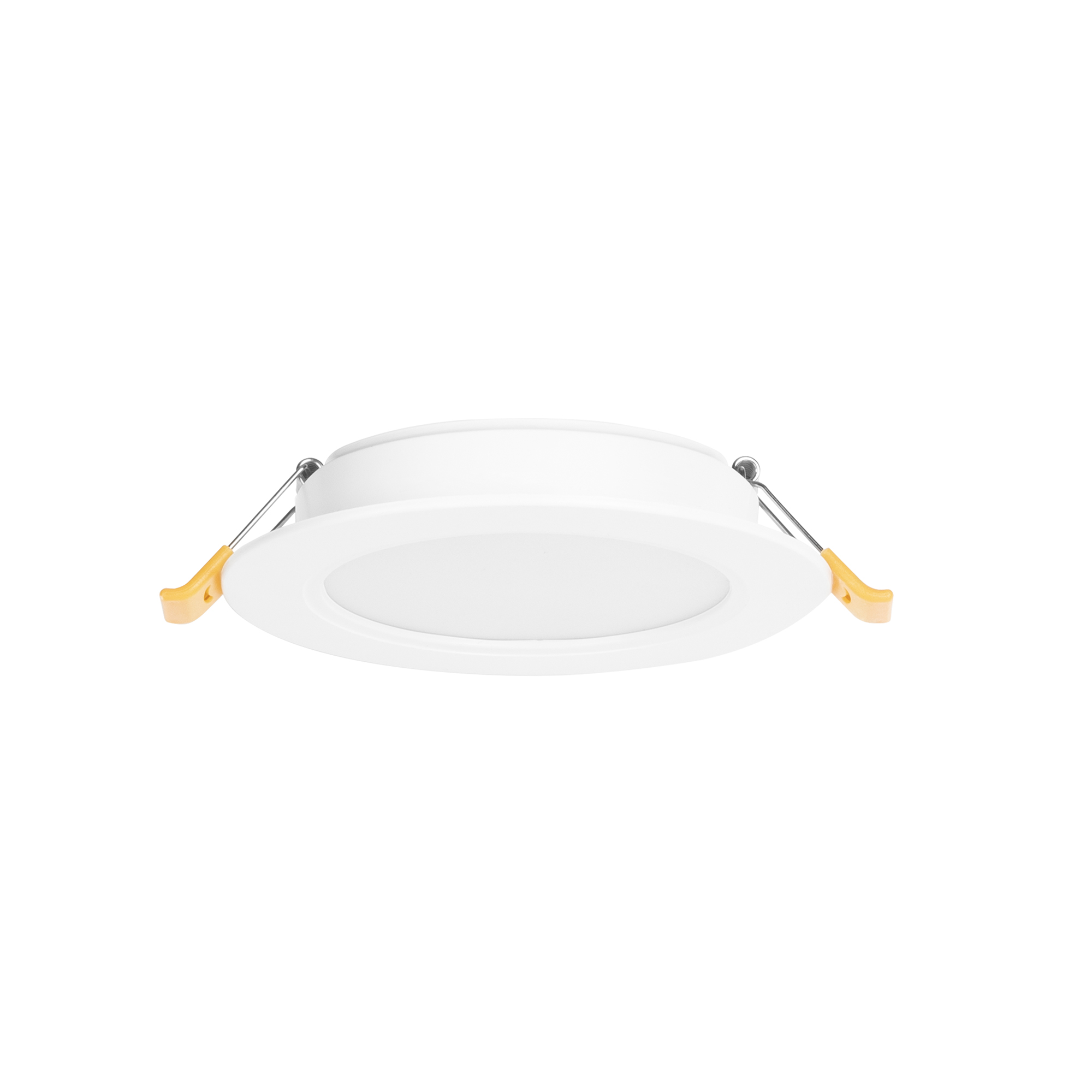

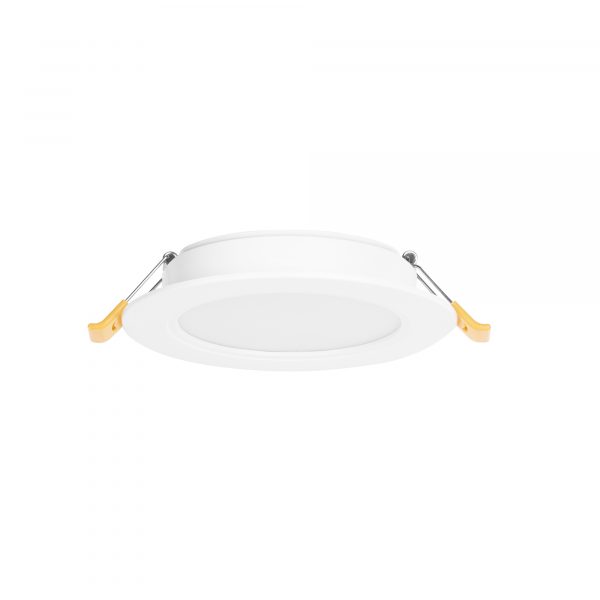

LedsC4 ELEMENT TC-0082-BLA Downlight for indoor use. For downlighting. Structure material: Polycarbonate. Structure finish: White. Diffuser material: Technopolymer. Diffuser finish: Gold. Warranty: 5 Years. Product net weight (Kg): 0.08 Product width or diameter (mm): 120 Product height (mm): 26 Ø of the hole for recessing (mm): 90-110 Permitted ceiling thickness: 15 Class 2. Luminaire not suitable for coating with insulation materials. IP: IN IP20 / OUT IP54. LED. No. of lampholders or LEDs: 1. Maximum power of light source: 9.6W. Colour temperature: SW 3000-4000-6000K. Colour rendering index: 80. MacAdam Steps: 3. Hours of life: 36.000h L70B30. UGR: 26.6. Photobiological risk: RG0. Real flux (lm): 869. Nominal flux (lm): 1610. Real lm/W: 91. Voltage / frequency range: 220-240/50-60Hz. Voltage: 3. Colour temperature: SW 3000-4000-6000K. Colour rendering index: 80. MacAdam Steps: 3. Hours of life: 36.000h L70B30. UGR: 26.6. Photobiological risk: RG0. Real flux (lm): 869. Nominal flux (lm): 1610. Real lm/W: 91. Voltage: 3. Equipment included: Yes. Total power: 9.6. Power factor: 0.56. Dimmable equipment included: ON-OFF.



Datasheet (pdf)
