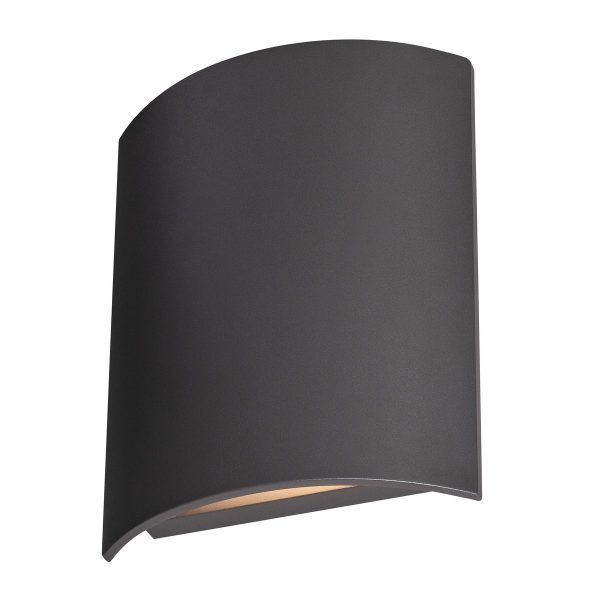

The 360° radiating LED SAIL recessed wall light is extremely suitable for outdoors because of the high IP protection class. Manufactured from aluminium and steel, the fitting is supplied ready for direct connection to 230V mains supply, thanks to the incorporated driver. LED SAIL is available with a white or anthracite finish. This luminaire contains built-in LED lamps.
Technical data
| Product name | SAIL | Assembly | Surface |
| BIG WHITE Page | 673 | Assembly details | Wall |
| Colour | anthracite | Shape | square |
| Material | Aluminium | Width | 25 cm |
| electrical power | 18 W | Height | 31.5 cm |
| Lumen/wattage | 22.22 lm/W | Light outlet | direct / indirect |
| Luminous Flux | 400 lm | Luminous intensity distribution | symmetric |
| Colour temperature | 3000 Kelvin | Shock resistance category | IK06 |
| Half beam angle | 70 ° | Shock resistance | 1 joule |
| CRI | 90 | Primary nominal voltage | 200-240V ~50Hz |
| Different light outlets | 1 | Net weight | 1.87 kg |
| Protection category | I | Weighted consumption | 18 kWh/1.000h |
| IP Code | IP 54 |
Manual (pdf)
