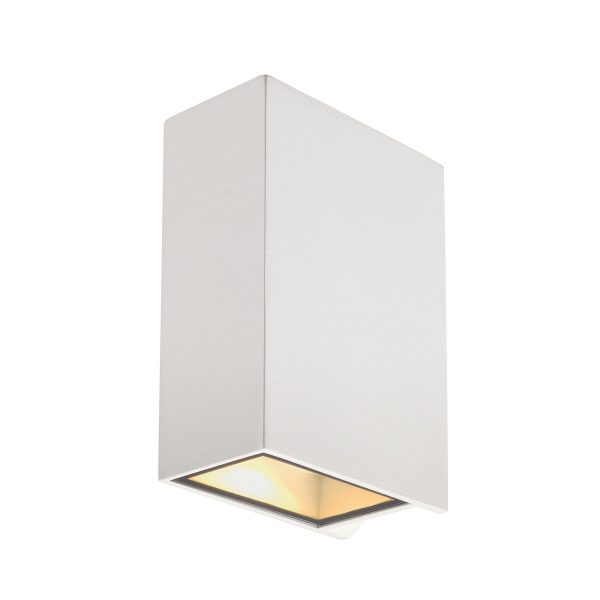

The QUAD 2 XL wall light is available in several colours, and fitted with a powerful, warm white LED. The electrical connection of the aluminium luminaire is made directly to the 230V mains supply using the built-in driver. Thanks to its IP44 protection class, the luminaire is suitable for outdoor use.
Technical data
| Product name | QUAD UP/DOWN 15 | Assembly details | Wall |
| BIG WHITE Page | 214 | Shape | square |
| Colour | white | Width | 5.3 cm |
| Material | Aluminium | Height | 15 cm |
| electrical power | 8.6 W | Light outlet | direct – indirect |
| Lumen/wattage | 67.44 lm/W | Luminous intensity distribution | symmetric |
| Luminous Flux | 580 lm | Colour consistency | 6 SDCM |
| Colour temperature | 3000 Kelvin | Service life | 30000 h |
| Half beam angle | 110 ° | Primary nominal voltage | 100-277V ~50/60Hz |
| CRI | 90 | Secondary power / secondary voltage | 350mA |
| Different light outlets | 2 | Net weight | 1.01 kg |
| Protection category | I | Weighted consumption | 8.6 kWh/1.000h |
| IP Code | IP 44 | LXXBXX data | L70B50 |
| Assembly | Surface |
