ROX ACRYL 60 Pole

175,69

Outdoor floor stand, IP44, stainless steel 304, E27 max 20W,

Description

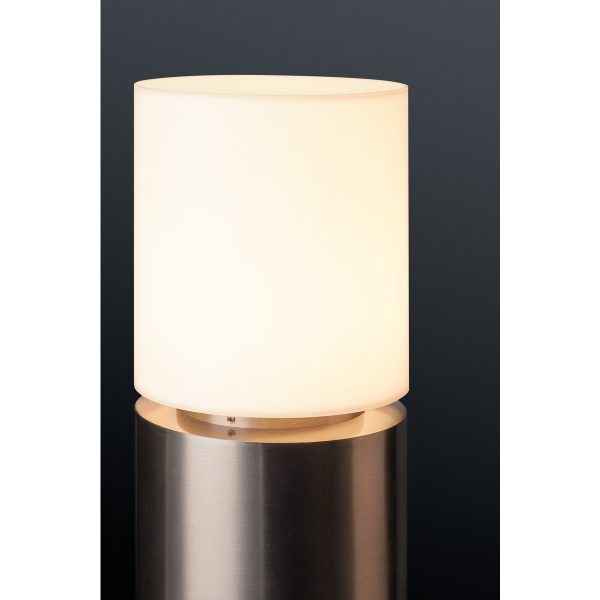

The ROX ACRYL POLE 60 floor stand is made from stainless steel 304 and opalescent acrylic glass that surrounds the bulb completely. With protection class IP44, the luminaire is available in several heights and is suitable for outdoor use. The electrical connection is made directly to the 230V mains supply. The ROX ACRYL series also includes wall and ceiling luminaires and can therefore be used universally. For simplified mounting, through-wiring is possible and an earth-spike and a concrete anchor set are available as accessories.

Technical data

Product name ROX ACRYL 60 Assembly details Ground
Ground with Acc.
BIG WHITE Page 581 Shape round

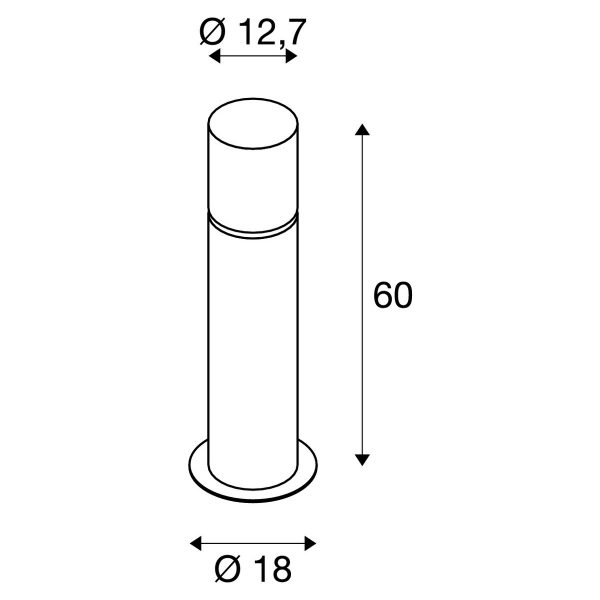

Colour stainless steel Height 60 cm
Material Stainless Steel 304 Diameter 12.7 cm
electrical power 20 W Light outlet diffuse
Socket E27 Luminous intensity distribution rotational symmetric
Number of sockets 1 Shock resistance category IK02
Protection category I Shock resistance 0.2 joule
IP Code IP 44 Primary nominal voltage 220-240V ~50/60Hz
Assembly Surface Net weight 2.2 kg



Manual (pdf)

CE declaration (pdf)

Assembly drawings (pdf)

Datasheet (pdf)

Tender Text (txt)

Additional information
Brand

SLV

Watt

12W
