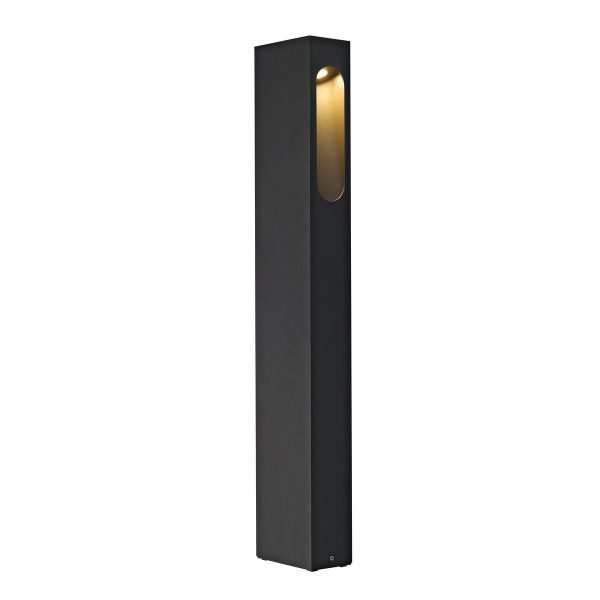

The indirect floor luminaire SLOTBOX 70 convinces with an extraordinary appearance. Equipped with a high-quality, warm white LED, it provides a perfect mix of efficiency and strong design character. It is suitable for use outdoors thanks to its IP44 protection class. A concrete-anchor-set for the secure mounting is included. Thanks to the incorporated LED driver, the electrical connection of both versions is made directly to 230V mains supply.
Technical data
| Product name | SLOTBOX 70 | Length | 7 cm |
| BIG WHITE Page | 598 | Width | 12 cm |
| Colour | anthracite | Height | 70 cm |
| Material | Aluminium | Light outlet | direct |
| electrical power | 8.7 W | Luminous intensity distribution | symmetric |
| Lumen/wattage | 18.39 lm/W | Service life | 35000 h |
| Luminous Flux | 160 lm | Shock resistance category | IK04 |
| Colour temperature | 3000 Kelvin | Shock resistance | 0.5 joule |
| CRI | 90 | Primary nominal voltage | 200-240V ~50/60Hz |
| Protection category | II | Secondary power / secondary voltage | 700mA |
| IP Code | IP 44 | Net weight | 2.16 kg |
| Assembly | Surface | Weighted consumption | 8.7 kWh/1.000h |
| Assembly details | Ground | LXXBXX data | L70B50 |
| Shape | square |
