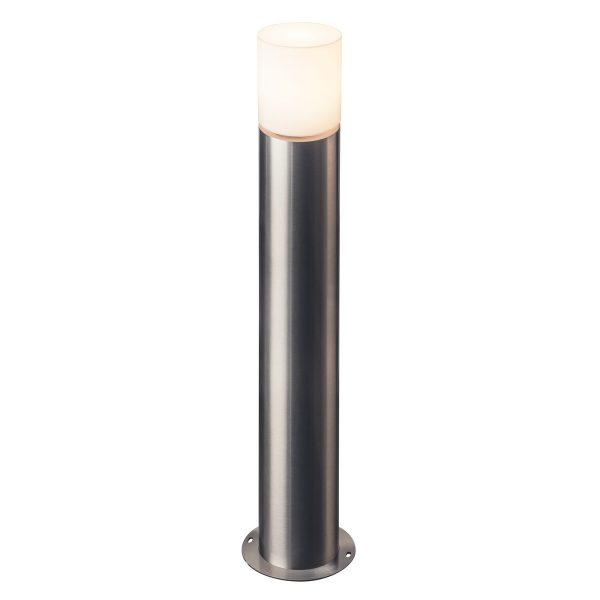

The ROX ACRYL POLE 90 floor stand is made from stainless steel 304 and opalescent acrylic glass that surrounds the bulb completely. With protection class IP44, the luminaire is available in several heights and is suitable for outdoor use. The electrical connection is made directly to the 230V mains supply. The ROX ACRYL series also includes wall and ceiling luminaires and can therefore be used universally. For simplified mounting, through-wiring is possible and an earth-spike and a concrete anchor set are available as accessories.
Technical data
| Product name | ROX ACRYL 90 | Assembly details | Ground Ground with Acc. |
| BIG WHITE Page | 581 | Shape | round |
| Colour | stainless steel | Height | 90 cm |
| Material | Stainless Steel 304 | Diameter | 12.7 cm |
| electrical power | 20 W | Light outlet | diffuse |
| Socket | E27 | Luminous intensity distribution | rotational symmetric |
| Number of sockets | 1 | Shock resistance category | IK02 |
| Protection category | I | Shock resistance | 0.2 joule |
| IP Code | IP 44 | Primary nominal voltage | 220-240V ~50/60Hz |
| Assembly | Surface | Net weight | 3.17 kg |
Manual (pdf)
