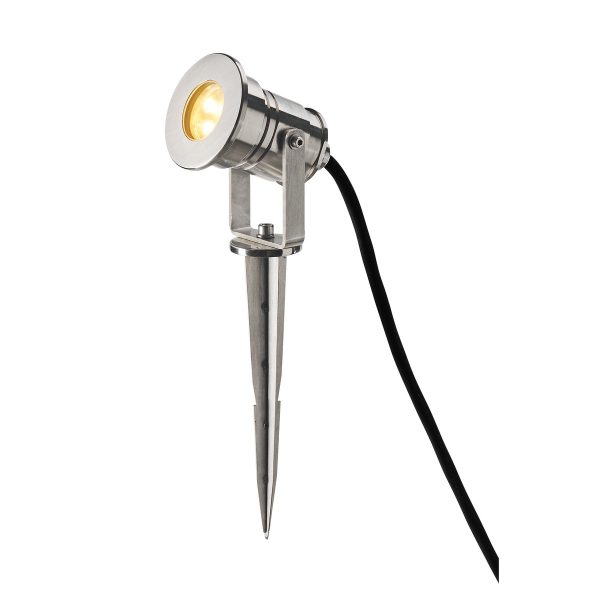

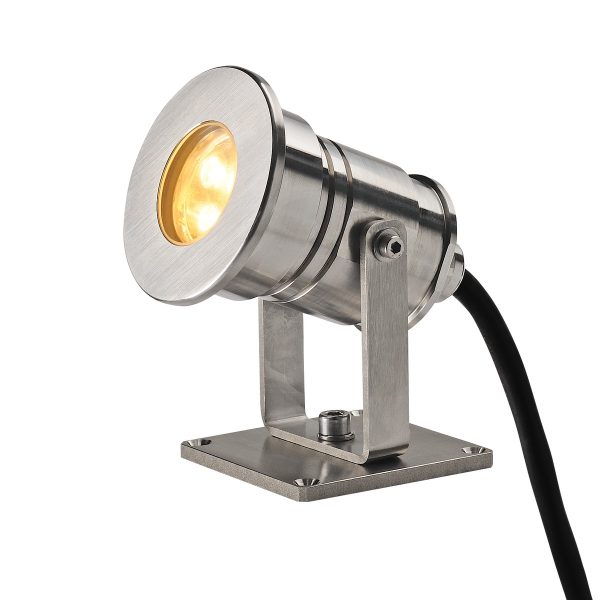

The surface-mounted DASAR PROJECTOR series lights are fitted with a 7W premium LED and available with a warm-white colour of light. The electrical connection is to a compatible 12V or 24V DC power supply. With IP68 protection class, the luminaire is suitable for outdoor use. The stainless steel DASAR PROJECTOR series includes a further aluminium version, among other things. This luminaire has built-in LED lamps and can be used as a spike luminaire with an earth spike. The lamps in the luminaire cannot be replaced.

Technical data

Product name	DASAR®PROJECTOR	Shape	round

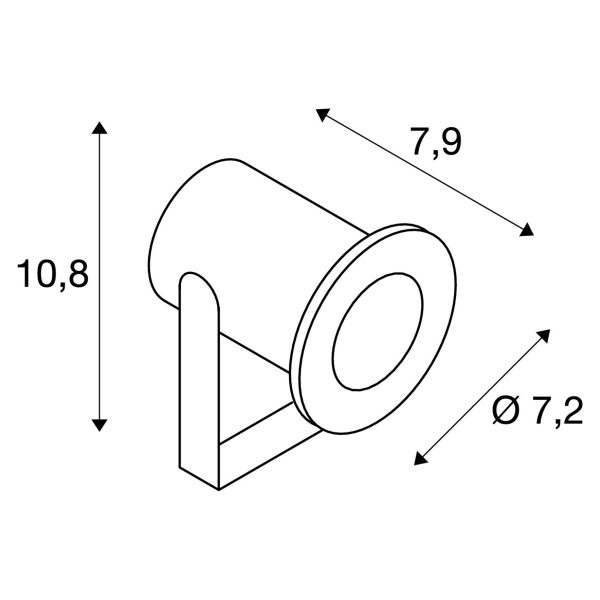

BIG WHITE Page	630	Length	7.2 cm
Colour	stainless steel	Width	10 cm
Material	Stainless Steel 316	Height	10.8 cm
electrical power	7 W	Rotating or tilting	pivoting
Luminous Flux	360 lm	Vertical tilting range	90 °
Colour temperature	3000 Kelvin	Light outlet	direct
Half beam angle	40 °	Luminous intensity distribution	rotational symmetric
CRI	90	Colour consistency	6 SDCM
Protection category	III	Service life	25000 h
IP Code	IP 68	Primary nominal voltage	12-24V
Assembly	Surface	Net weight	1.16 kg
Assembly details	Ceiling Ceiling with Acc. Ground Ground with Acc. Wall Wall with Acc.	LXXBXX data	L70B50
