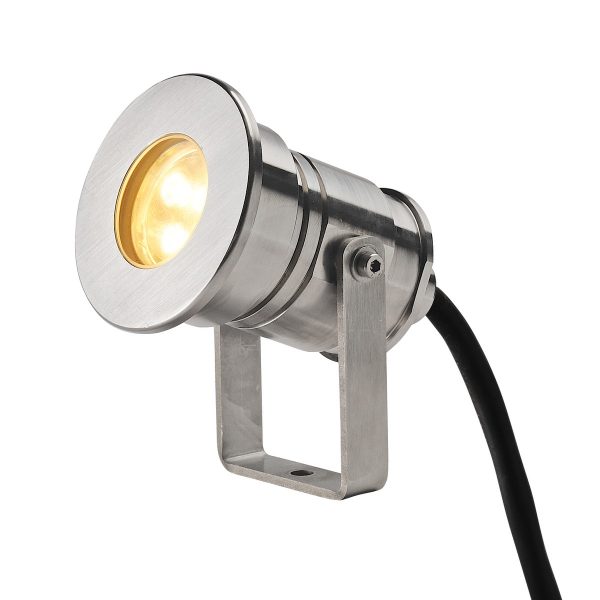

The surface-mounted DASAR PROJECTOR series lights are fitted with a 6W premium LED and available with a warm-white colour of light. The electrical connection is to a compatible 12V or 24V DC power supply. With IP67 protection class, the luminaire is suitable for outdoor use. The stainless steel DASAR PROJECTOR series includes a further aluminium version, among other things. This luminaire has built-in LED lamps and can be used as a spike luminaire with an earth spike. The lamps in the luminaire cannot be replaced.
Technical data
| Product name | DASAR®PROJECTOR | Width | 10 cm |
| BIG WHITE Page | 630 | Height | 10.8 cm |
| Colour | stainless steel | Rotating or tilting | pivoting |
| Material | Stainless Steel 316 | Vertical tilting range | 90 ° |
| electrical power | 5.5 W | Light outlet | direct |
| Lumen/wattage | 54.55 lm/W | Colour consistency | 6 SDCM |
| Luminous Flux | 300 lm | Service life | 25000 h |
| Colour temperature | 3000 Kelvin | Shock resistance category | IK04 |
| Half beam angle | 40 ° | Shock resistance | 0.5 joule |
| CRI | 90 | Primary nominal voltage | 220-240V ~50/60Hz |
| Protection category | I | Secondary power / secondary voltage | 400mA |
| IP Code | IP 67 | Ambient temperature | 40 °C |
| Assembly | Surface | Net weight | 1.18 kg |
| Assembly details | Ceiling Ceiling with Acc. Ground Ground with Acc. Wall Wall with Acc. |
Weighted consumption | 5.5 kWh/1.000h |
| Shape | round | LXXBXX data | L70B50 |
| Length | 7.2 cm |
