HELIA
€187,00
outdoor spot, LED, 3000K, 35°, anthracite, IP55,
Description

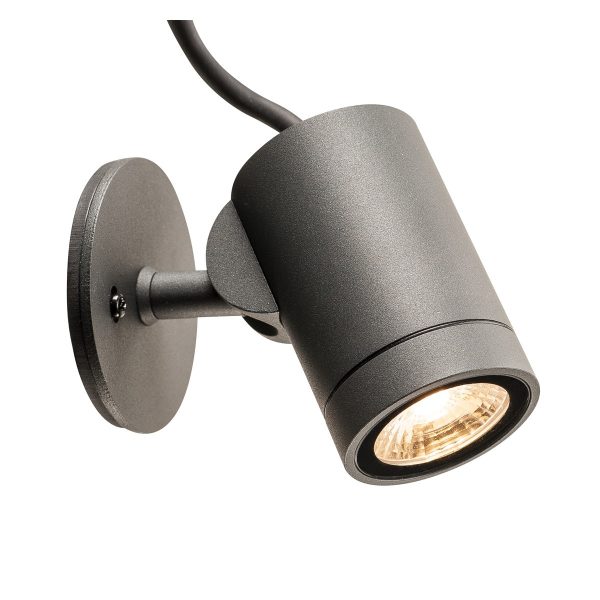

The HELIA LED pathway luminaire is equipped with an 8W high-voltage LED and emits a warm-white light colour. The luminaire is made of aluminium and is connected using the 3m supply cable with open cable ends directly to the 230V mains supply. Thanks to its IP55 protection class, the luminaire is suitable for outdoor use. This dimmable luminaire contains built-in LED lamps.
Technical data

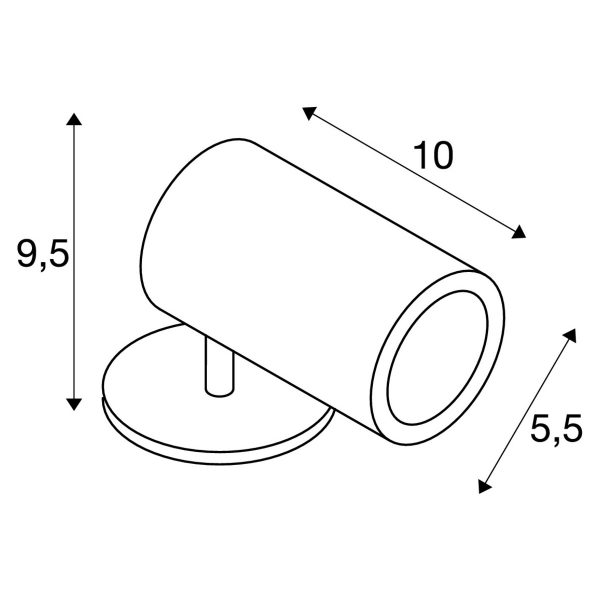

| Product name | HELIA SPOT S | Length | 10 cm |
| BIG WHITE Page | 631 | Height | 9.5 cm |
| Colour | anthracite | Diameter | 5.5 cm |
| Material | Aluminium | Rotating or tilting | true |
| electrical power | 8 W | Vertical tilting range | 90 ° |
| Lumen/wattage | 60 lm/W | Horizontal rotation range | 330 ° |
| Luminous Flux | 480 lm | Light outlet | direct |
| Colour temperature | 3000 Kelvin | Luminous intensity distribution | rotational symmetric |
| Half beam angle | 35 ° | Colour consistency | 6 SDCM |
| CRI | 90 | Service life | 30000 h |
| Dimmable | Yes | Shock resistance category | IK04 |
| Dimming technology | Leading edge | Shock resistance | 0.5 joule |
| Protection category | I | Primary nominal voltage | 220-240V ~50/60Hz |
| IP Code | IP 55 | Net weight | 0.67 kg |
| Assembly | Surface | Weighted consumption | 8 kWh/1.000h |
| Assembly details | Ceiling Ground Wall |
LXXBXX data | L70B50 |
| Shape | round |
Manual (pdf)
Additional information
| Colour Temperature |
3000K |
|---|---|
| Watt |
8W |
| Lumen |
480lm |
| Brand |
SLV |
