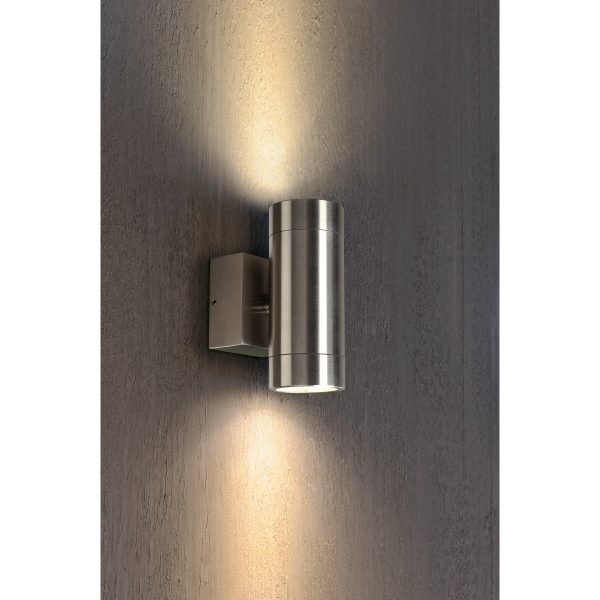

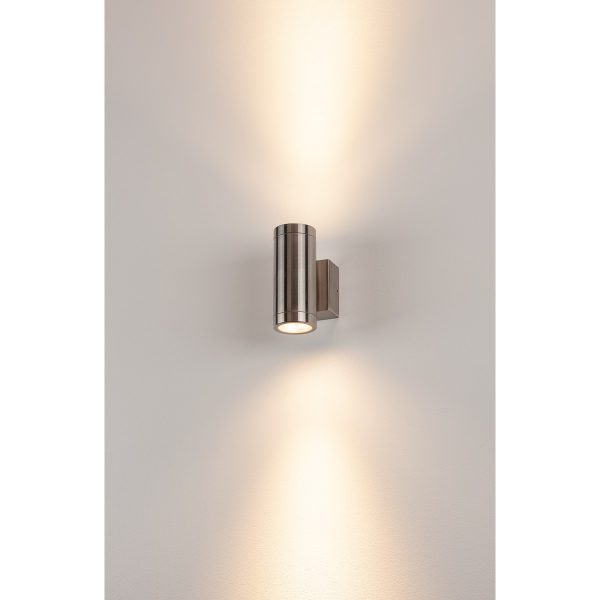

The ASTINA STEEL wall light is made of stainless steel and glass, which covers the lamp. Thanks to the position of the premium LEDs fitted, the mounted luminaire produces two equal but opposite cones of light (UP/DOWN). It is suitable for use outdoors thanks to its IP44 protection class. The electrical connection is made directly to the 230V mains supply.
Technical data
| Product name | ASTINA STEEL | Assembly details | Wall |
| BIG WHITE Page | 681 | Shape | cylindrical |

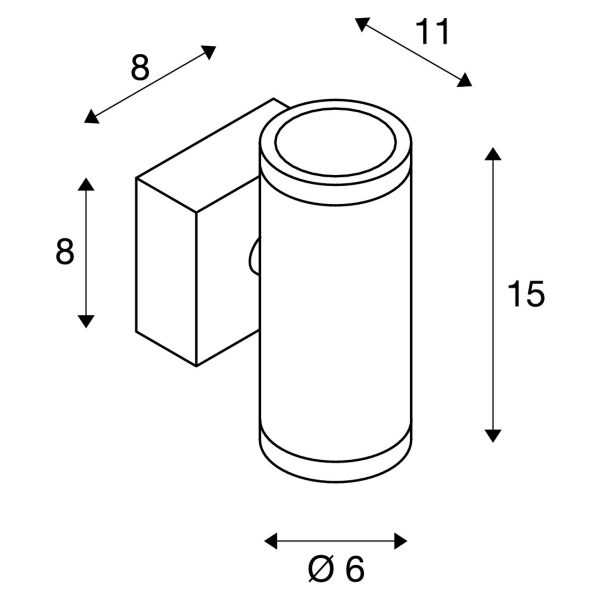

| Colour | stainless steel | Width | 7.5 cm |
| Material | Stainless Steel 316 | Height | 15 cm |
| electrical power | 8 W | Depth | 11 cm |
| Lumen/wattage | 58.62 lm/W | Light outlet | direct – indirect |

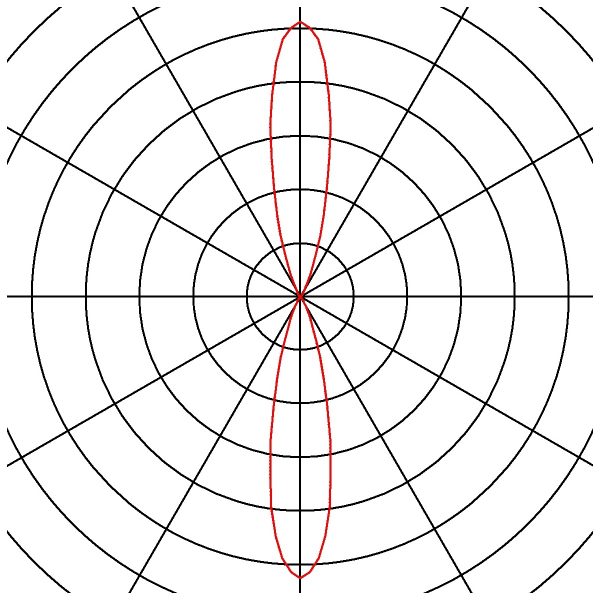

| Luminous Flux | 510 lm | Luminous intensity distribution | rotational symmetric |
| Colour temperature | 3000 Kelvin | Colour consistency | 6 SDCM |
| Half beam angle | 24 ° | Service life | 25000 h |
| CRI | 90 | Primary nominal voltage | 100-240V ~50/60Hz |
| Different light outlets | 2 | Secondary power / secondary voltage | 350mA |
| Protection category | I | Net weight | 1.46 kg |
| IP Code | IP 44 | Weighted consumption | 8.7 kWh/1.000h |
| Assembly | Surface | LXXBXX data | L70B50 |
