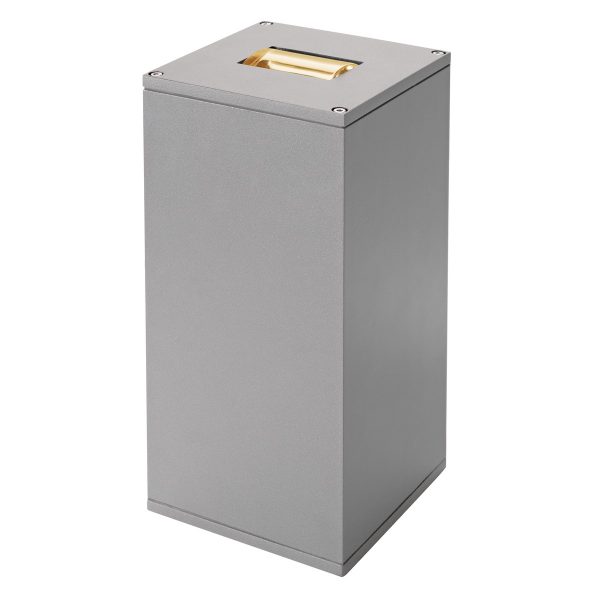

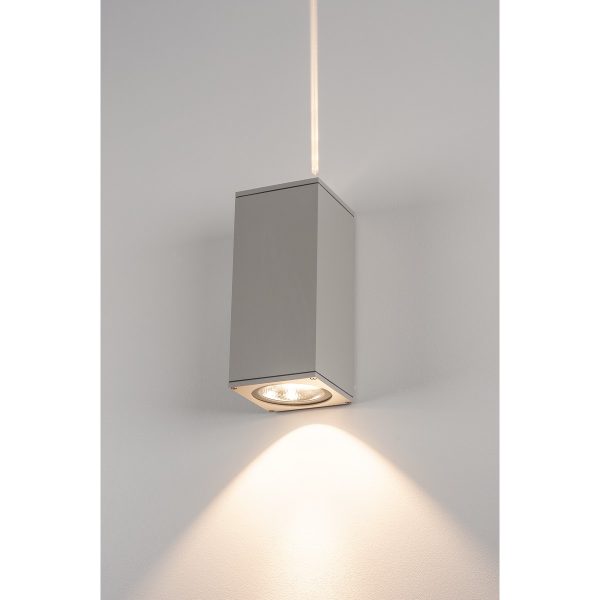

The BIG THEO WALL flood up/beam down LED wall light is made of aluminium and glass. Thanks to its two built-in LEDs, the mounted luminaire produces two different cones of light (upper light outlet a narrow cone, lower light outlet a wide cone). It is suitable for use outdoors thanks to its IP44 protection class. Thanks to the built-in LED driver, the electrical connection of the luminaire, which comes in several colour versions, is made directly to the 230V mains supply. In addition, the BIG THEO series includes wall and ceiling lights and is therefore universally deployable. This luminaire includes built-in LED lamps.
Technical data
| Product name | BIG THEO FLOOD DOWN/BEAM UP | Shape | square |

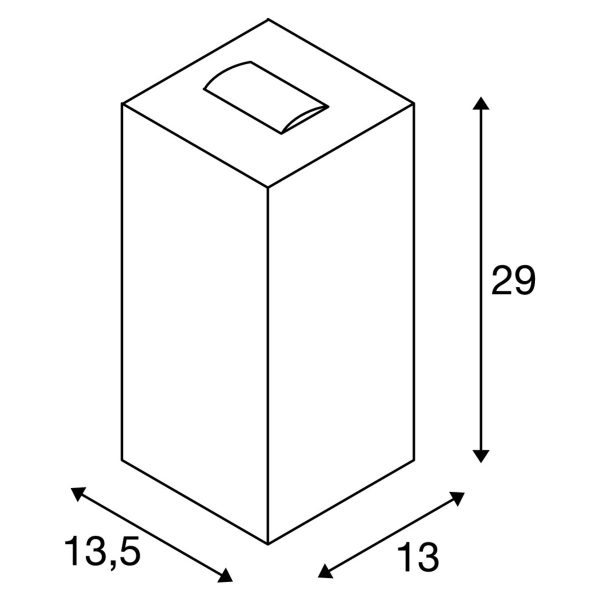

| Colour | grey | Width | 13 cm |
| Material | Aluminium | Height | 29 cm |
| electrical power | 29 W | Light outlet | direct – indirect |
| Lumen/wattage | 73.45 lm/W | Luminous intensity distribution | rotational symmetric |
| Luminous Flux | 2130 lm | Colour consistency | 6 SDCM |
| Colour temperature | 3000 Kelvin | Service life | 25000 h |
| Half beam angle | 24 ° | Shock resistance category | IK02 |
| CRI | 90 | Shock resistance | 0.2 joule |
| Different light outlets | 2 | Primary nominal voltage | 120-240V ~50/60Hz |
| Protection category | I | Secondary power / secondary voltage | 500mA |
| IP Code | IP 44 | Net weight | 2.37 kg |
| Assembly | Surface | Weighted consumption | 29 kWh/1.000h |
| Assembly details | Wall | LXXBXX data | L70B50 |
Manual (pdf)
